Machinery

Road construction equipment

Asphalt plants, bitumen handling equipment and allied machinery from the MACHCONZ catalogue.

The catalogue presents road and building construction equipment for asphalt production, bitumen spraying, base-course mixing and concrete. Capacities below are the figures printed in the catalogue text. Where a Titon Techno Industries sheet is included, that sheet is shown with its own note that the technical data is not binding.

Asphalt drum mix plant with cold feed bins, drum and conveyor

Asphalt production

Asphalt drum mix plants

The asphalt drum mix plants are described as delivering high performance and durability with capacities from 30 to 150 TPH. They are available in stationary and mobile variants.

Robust components listed are cold feed bins, efficient drum mixers with automatic burners, conveyors with discharge hoppers, wet scrubbers, asphalt and fuel tanks, and computerized control cabins. Optional features like bag filters and storage silos enhance flexibility and function.

Capacity
30–150 TPH
Variants
Stationary and mobile
  • Cold feed bins
  • Drum mixers with automatic burners
  • Conveyors with discharge hoppers
  • Wet scrubbers
  • Asphalt and fuel tanks
  • Computerized control cabins
  • Optional bag filters and storage silos
Enquire about this Open detail
Catalogue sheet for an asphalt batch mix plant

Asphalt production

Asphalt batch mix plants

An asphalt batch mix plant is described as crucial equipment for producing high-quality hot mix asphalt in batches. It operates on a precise process involving several components to ensure uniform mixing and consistent quality.

Plant capacity from 80 TPH to 200 TPH indicates it is designed for high-volume production, suitable for extensive road projects, highways, and urban infrastructure developments.

Capacity
80–200 TPH
Duty
High-volume asphalt production

A manufacturer sheet in the catalogue carries the Titon Techno Industries mark and states that technical data is not binding and may change. The sheet is shown below; model tables are left on that sheet rather than retyped.

Enquire about this Open detail
Titon asphalt batch mix plant sheet printed in the catalogue, capacity up to 200 TPH
Catalogue sheet included with this product. Read the printed note on the sheet before treating model data as final.

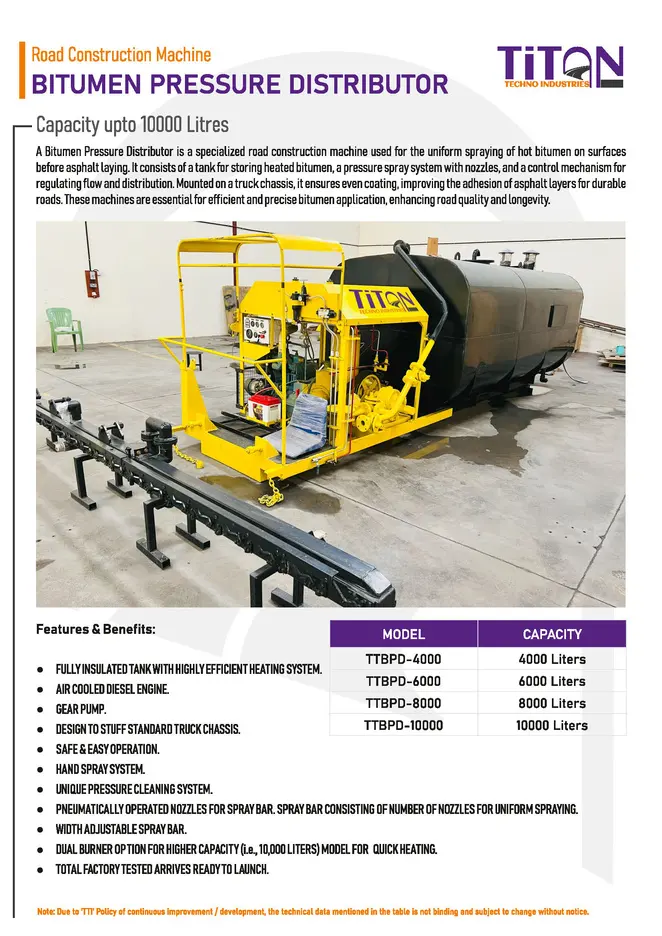

Catalogue sheet for a bitumen pressure distributor

Bitumen spraying

Bitumen pressure distributor

The catalogue titles this equipment a bitumen pressure distributor. The printed feature list covers a fully insulated tank with a highly efficient heating system, an air-cooled diesel engine, a gear pump, a design to suit a standard truck chassis, safe and easy operation, a hand spray system, and a unique pressure cleaning system.

The catalogue sheet heading states capacity up to 10,000 litres and includes a model table. Those model rows are on the sheet image.

Sheet heading
Capacity up to 10,000 litres
  • Fully insulated tank with highly efficient heating system
  • Air-cooled diesel engine
  • Gear pump
  • Designed to suit a standard truck chassis
  • Safe and easy operation
  • Hand spray system
  • Unique pressure cleaning system

A manufacturer sheet in the catalogue carries the Titon Techno Industries mark and states that technical data is not binding and may change. The sheet is shown below; model tables are left on that sheet rather than retyped.

Enquire about this Open detail
Titon bitumen pressure distributor sheet, including the model and capacity table
Catalogue sheet included with this product. Read the printed note on the sheet before treating model data as final.

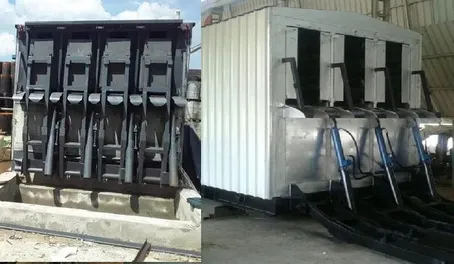

Bitumen drum decanter units shown in the catalogue

Bitumen handling

Bitumen drum decanter

The catalogue lists the bitumen drum decanter with capacity up to 8 ton, fully automated operation, an optimized heating system, a flexible bitumen handling system, heavy-duty build, and a low-maintenance design.

Capacity
Up to 8 ton
  • Fully automated operation
  • Optimized heating system
  • Flexible bitumen handling system
  • Heavy-duty build
  • Low-maintenance design
Enquire about this Open detail

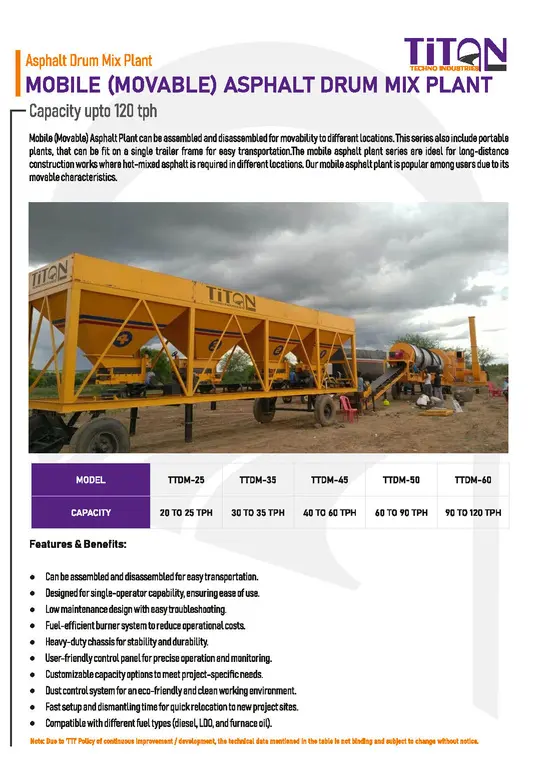

Catalogue sheet for a mobile asphalt drum mix plant

Asphalt production

Mobile drum mix asphalt plants

Movable (mobile) drum mix asphalt plants are portable hot-mix plants mounted on chassis, typically 20–120 TPH capacity, suitable for PMGSY-type road works where frequent shifting is required.

Capacity
Typically 20–120 TPH
Form
Portable, chassis-mounted
Use cited
Works that need frequent shifting, including PMGSY-type roads

A manufacturer sheet in the catalogue carries the Titon Techno Industries mark and states that technical data is not binding and may change. The sheet is shown below; model tables are left on that sheet rather than retyped.

Enquire about this Open detail
Titon mobile asphalt drum mix plant sheet with model capacities
Catalogue sheet included with this product. Read the printed note on the sheet before treating model data as final.

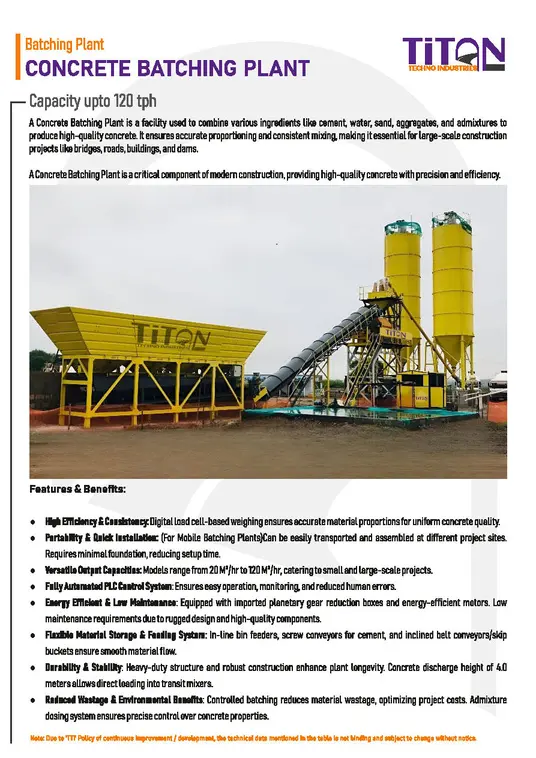

Catalogue sheet for a concrete batching plant

Concrete

Concrete batching plants

A concrete batching plant is equipment that measures, mixes, and discharges concrete in controlled batches, with typical capacities from about 8 to 200 m³/hour depending on type.

The catalogue also includes a specification sheet and a mobile batching plant description. The sheet heading on the mobile section states capacity up to 120 TPH, while the printed table uses cubic metres per hour. Both are left on the sheet image so the printed units stay visible.

Catalogue range
About 8–200 m³/hour, depending on type

A manufacturer sheet in the catalogue carries the Titon Techno Industries mark and states that technical data is not binding and may change. The sheet is shown below; model tables are left on that sheet rather than retyped.

Enquire about this Open detail
Concrete batching plant technical specification sheet and mobile batching plant description from the catalogue
Catalogue sheet included with this product. Read the printed note on the sheet before treating model data as final.

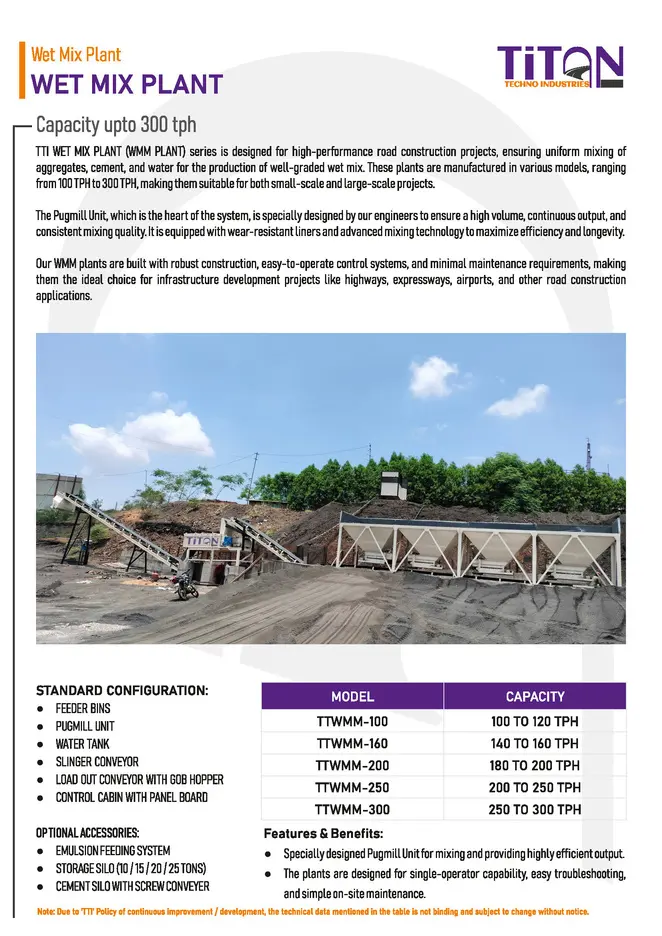

Catalogue sheet for a wet mix plant

Base course

WBM / WMM plants

In current road practice, the catalogue says a WBM plant usually refers to a wet mix macadam (WMM) / wet mix plant used to produce mechanically mixed base material for WBM/WMM layers, rather than a separate plant only for traditional hand-worked WBM.

A manufacturer sheet in the catalogue carries the Titon Techno Industries mark and states that technical data is not binding and may change. The sheet is shown below; model tables are left on that sheet rather than retyped.

Enquire about this Open detail
Titon wet mix plant sheet with configuration and model table
Catalogue sheet included with this product. Read the printed note on the sheet before treating model data as final.

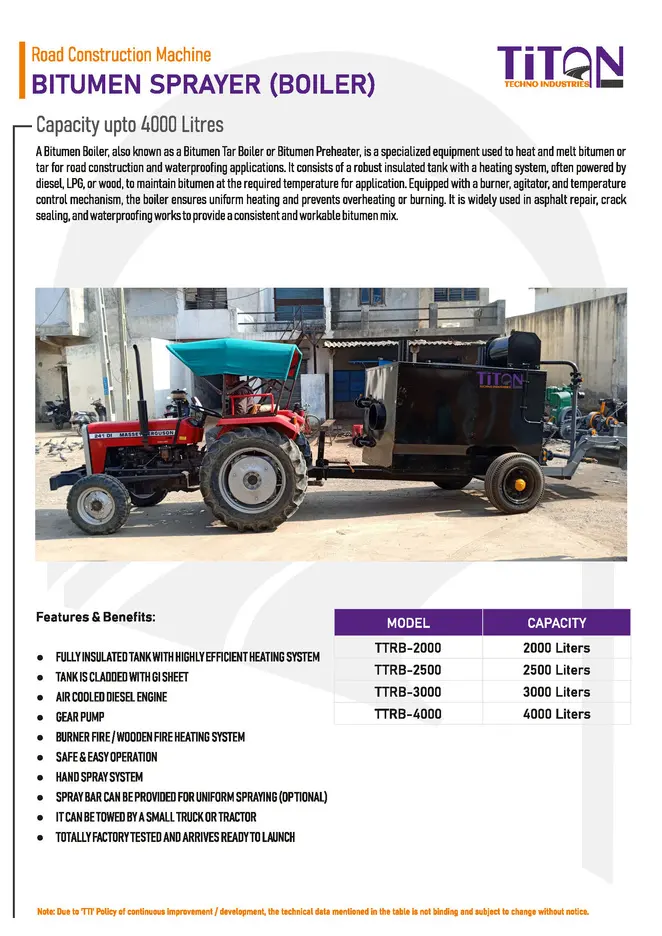

Catalogue sheet for a bitumen sprayer and boiler towed by a tractor

Bitumen spraying

Tractor-mounted bitumen sprayers

Tractor-mounted bitumen sprayers are self-contained units fitted on a tractor’s 3-point hitch or trolley, used for applying tack coat, prime coat, or emulsion evenly during road construction like PMGSY works.

The catalogue sheet for this equipment is titled Bitumen Sprayer (Boiler). Its heading states capacity up to 4,000 litres. The model table remains on the sheet.

Mounting
Tractor 3-point hitch or trolley
Applications cited
Tack coat, prime coat, emulsion
Sheet heading
Capacity up to 4,000 litres

A manufacturer sheet in the catalogue carries the Titon Techno Industries mark and states that technical data is not binding and may change. The sheet is shown below; model tables are left on that sheet rather than retyped.

Enquire about this Open detail
Titon bitumen sprayer (boiler) sheet, capacity up to 4000 litres
Catalogue sheet included with this product. Read the printed note on the sheet before treating model data as final.
Mobile concrete mixing equipment shown on the catalogue batching sheet

Concrete

Concrete mixers

The catalogue lists a concrete mixer with drum capacity of 7/5 CFT, or about 150–200 litres. Batch capacity is 3/4 bag of cement, with mixed output around 150 litres.

Electric versions are given as around 2–3 HP and diesel versions as around 5–6 HP. Weight is often around 300 kg to 750 kg depending on build and chassis type.

Drum capacity
7/5 CFT, or about 150–200 litres
Batch capacity
3/4 bag cement
Mixed output
Around 150 litres
Power
Electric about 2–3 HP; diesel about 5–6 HP
Weight
Often about 300 kg to 750 kg
Enquire about this Open detail

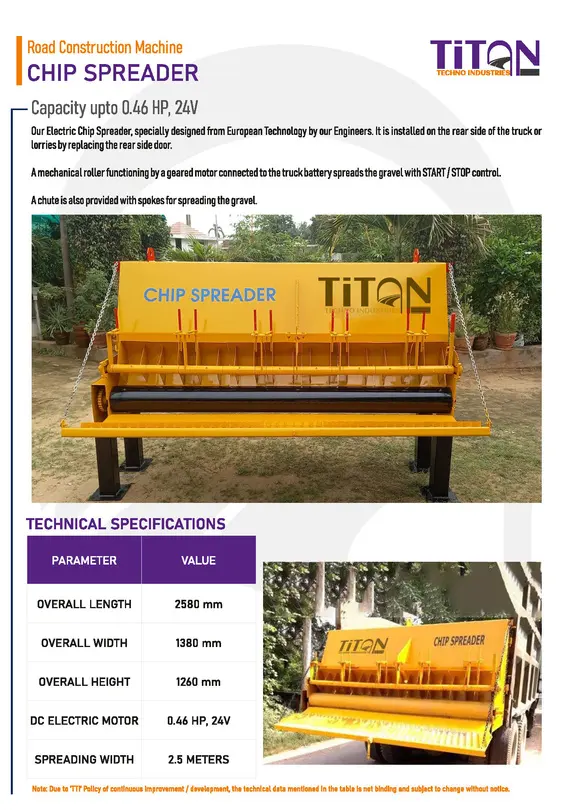

Catalogue sheet for a chip spreader

Surface dressing

Chip spreaders

A chip spreader is a road construction machine used to distribute stone chips or gravel evenly over a bitumen-sprayed surface, especially for surface dressing and chip seal work.

The catalogue sheet describes an electric chip spreader installed on the rear of a truck or by replacing the rear side door, with a geared motor connected to the truck battery and start/stop control. Dimensions and the 0.46 HP, 24V motor rating are printed on that sheet.

A manufacturer sheet in the catalogue carries the Titon Techno Industries mark and states that technical data is not binding and may change. The sheet is shown below; model tables are left on that sheet rather than retyped.

Enquire about this Open detail
Titon chip spreader sheet with dimensions and motor rating
Catalogue sheet included with this product. Read the printed note on the sheet before treating model data as final.
